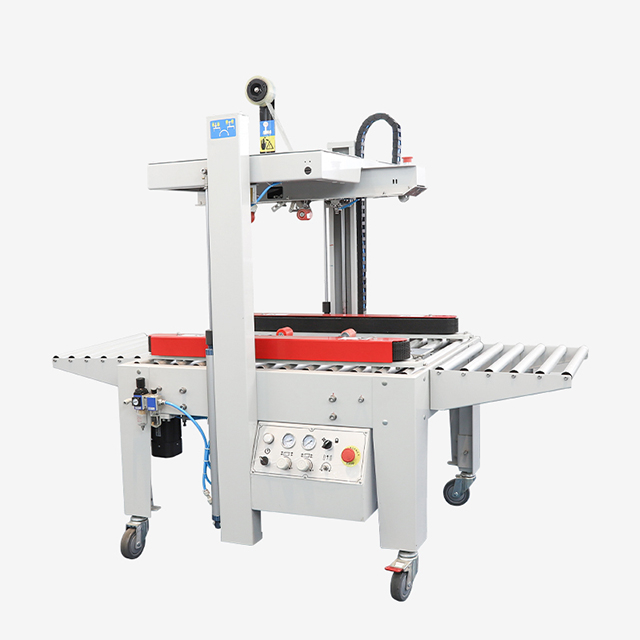

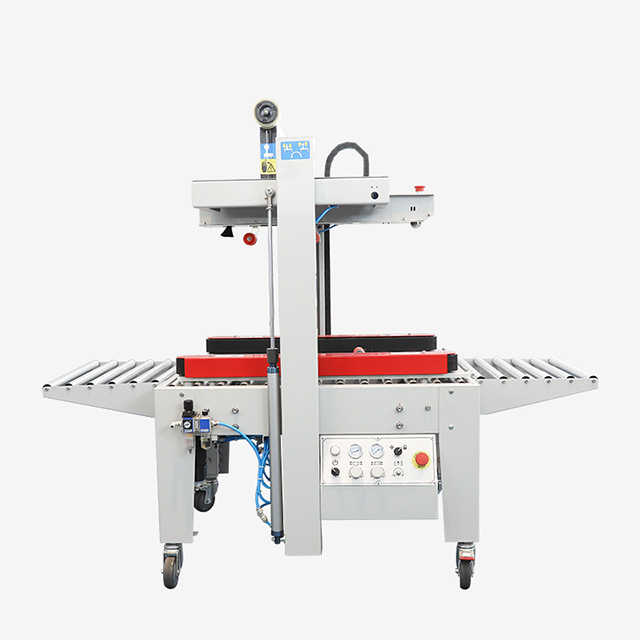

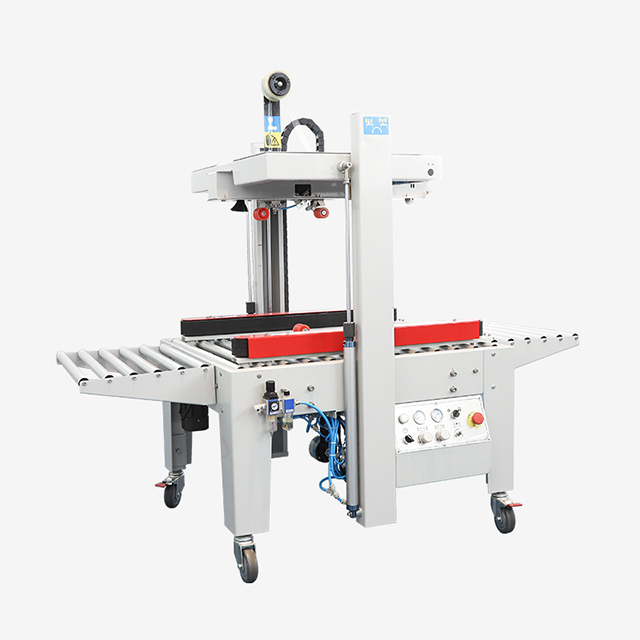

New Locking Mode Automatic Pneumatic Carton Sealing Machine FXJ-5050QS

-New Locking Mode Automatic Pneumatic Carton Sealing Machine FXJ-5050QS

10 items in stock

Description:

FXJ-5050QS pneumatic carton sealer with new locking mode is especially applied to continuously seal cartons in different sizes, which is used in the fields of domestic electrical appliance, foodstuffs, general merchandise, medicine and chemical industries. * Using tape width of 36-48mm and with 50mm on the sides of the carton; * Simple panel with the knob of switching between automatic mode and fixed mode; * All pneumatic components adopt Airtac brand.



Parameter:

MODELFXJ-5050QS
Voltage   (V/Hz)AC 220/50
Power (W)220
Gas Pressure (Mpa)0.4~0.6
Max. Carton Size (W×H) (mm)Unlimited*500*500
Min. Carton Size (W×H) (mm)130*80*90
Taping Speed (m/min)20( Fixed mode:25-45 cartons / min ; Automatic mode:10-25 cartons / min )
Adhesive Tape UsedBOPP Water-free Adhesive Tape PVC Adhesive Tape
Height of Table (mm)580-780
Width of Adhesive Tape (mm)36,48
External Dimensions (L×W×H) (mm)1800*960*(1330-1530)
Net Weight (kg)194
Max. Conveyor Load(kg)30
